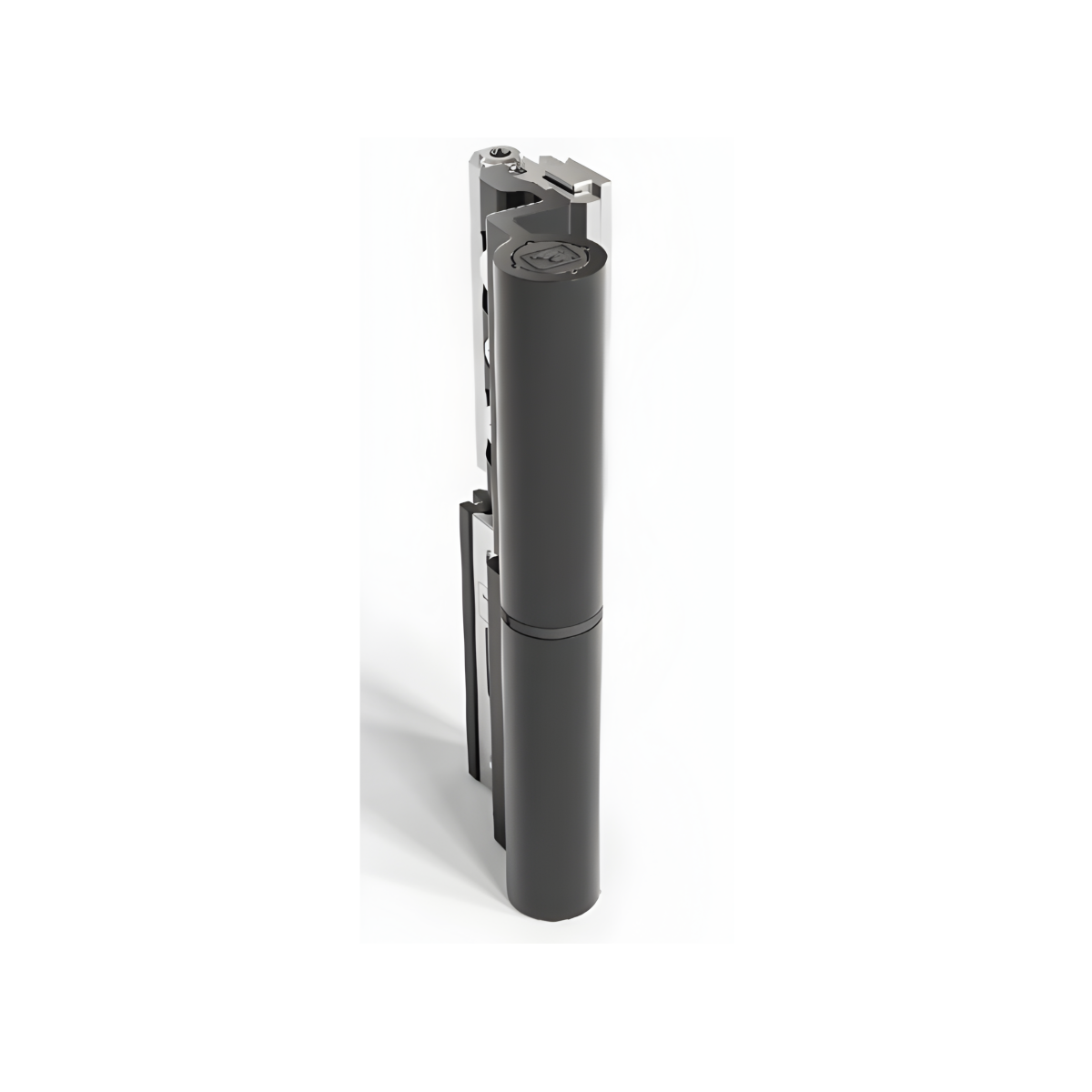

Adjustable in 6 directions. Available for almost all standard aluminum profiles with a clamping groove. Fixing with single-piece clamping plates. Fast installation without drilling. Hinges are available in anodized, RAL, and Hahn Trinox colors. CE-certified according to EN 1935:2002, hinge class 13.
For doors made of aluminum profiles, Dr. Hahn has further developed the Clamping Strip AT with numerous optimizations compared to the previous model. Thanks to the special geometry of the attachable Hahn clamping plates, the 2-piece version of the Hahn Clamping Strip AT can support door leaves weighing up to 120 kg when using two hinges. Higher weights can be handled in consultation with the Dr. Hahn Application Engineering department. The 18 mm roller diameter makes the door hinge on the element almost invisible. The 2-piece hinge version reaches a height of 132 mm.
The Hahn Clamping Strip AT can be adjusted in six directions on home and side entrance doors without any misalignment along the roller axis:
