PORTAL HS 400 kg

PORTAL HS 400 kg

With opening widths of up to 12 m and total widths of up to 19.8 m, lift-slide systems with PORTAL HS hardware create the space for brighter and more beautiful living. With HS 400 compact bogie wheels, state-of-the-art gear technology and many other innovations, you can set 300–400 kg in motion with ease. Walls and barriers are "dissolved into thin air" and you will benefit from time savings and cost reductions throughout the entire production process.

Allow even loads of up to 400 kilograms to glide effortlessly back and forth.

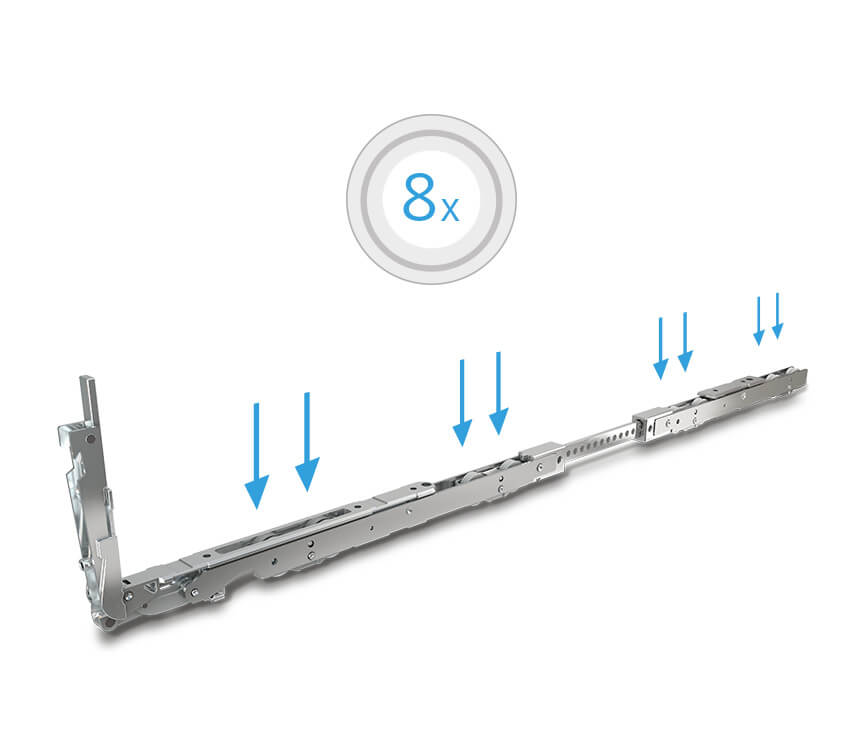

Even heavy sashes can be moved extremely smoothly and comfortably thanks to the load being evenly distributed across eight rollers. The optimized, self-aligning load distribution ensures fluid sliding performance while minimizing wear. Compared to standard carriages, the HS 400 compact bogie rollers feature a lower design, enabling slimmer profile sections and allowing up to 12 mm more daylight as well as improved thermal insulation values (U-value).

  • Eliminating the need for a tandem solution for sash weights between 300–400 kg reduces installation time, while the HS 400 compact version offers an adjustment range of approximately 3 mm, allowing quick and easy lifting of the sash in the relevant area. With all these features, the HS 400 compact enhances comfort in living spaces while increasing efficiency in production and installation processes.

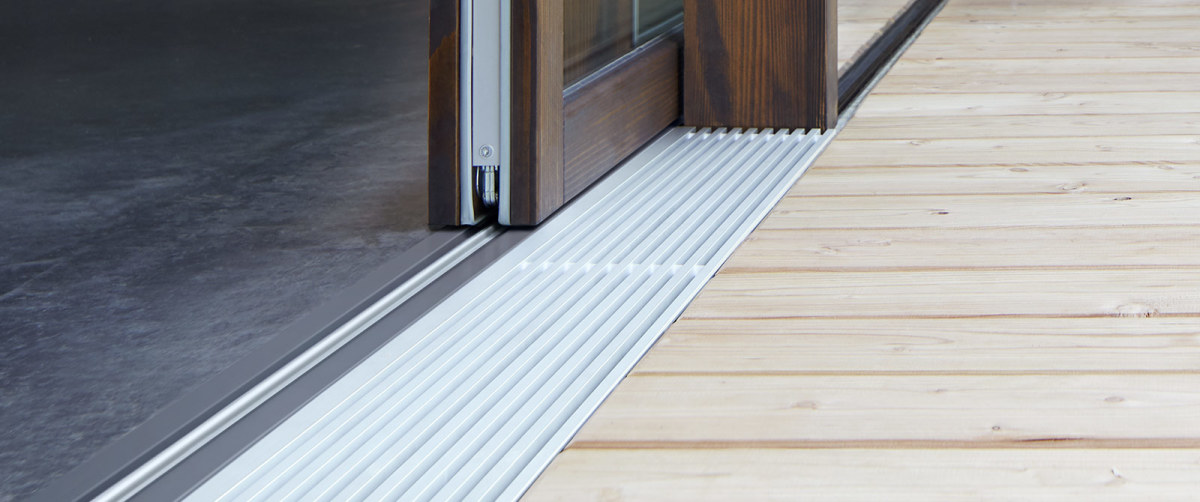

  • Barrier-free, 0 mm threshold system without incline,
  • Compliant with DIN 18040-2, for lift-and-slide systems made of timber-aluminium.
  • Optimum thermal insulation thanks to a 10-chamber design.
  • Perfect window sill installation and an optimized drainage system.

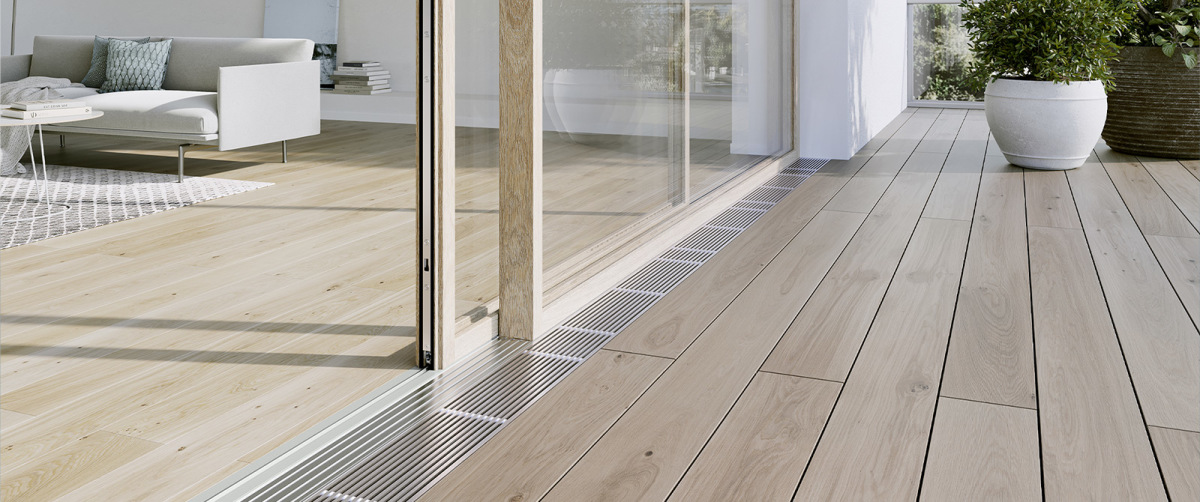

  • DIN 18040-2 compliant, barrier-free 0 mm threshold system without incline for lift-and-slide systems made of timber-aluminium.
  • Optimum thermal insulation is ensured by the 10-chamber design.
  • Perfect window sill installation and an optimized drainage system.
