CE-certified according to EN 1935:2002, hinge class 14. Ensures full seating of all roller and guide elements. The same appearance is maintained after adjustment. Roller diameter: 20 mm. Single-piece roller pin made of stainless steel.

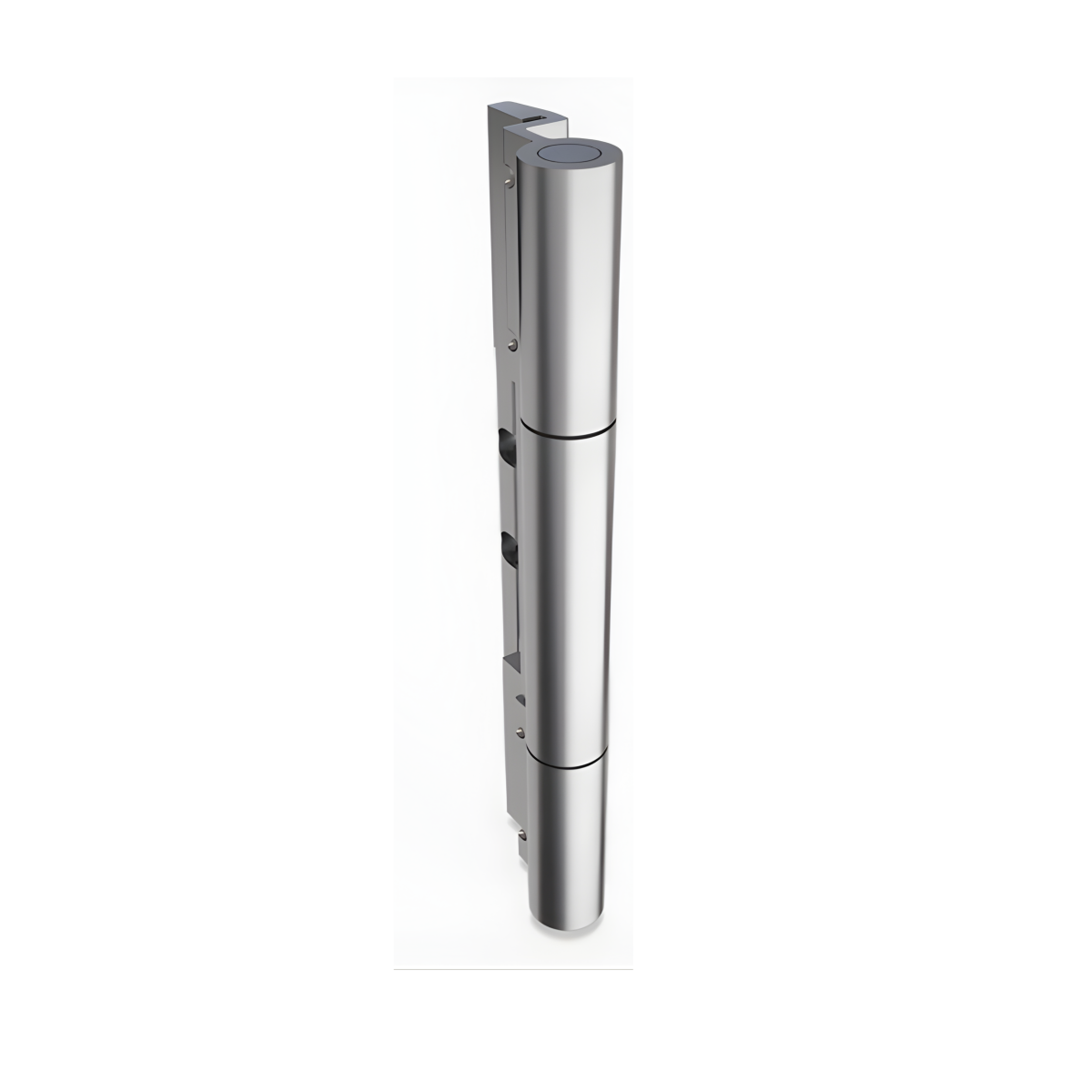

The new Rollenband AT is a hinge system adaptable to all common door frame systems. The 20 mm roller diameter meets the high design standards set by building owners and architects to ensure that hinges in residential and commercial doors are as inconspicuous as possible. Adjustable in six directions. Adjustments are made within the hinge. The well-designed hinge contour is preserved even in cases of extreme adjustment. Largely pre-assembled, the hinge can be mounted quickly and easily.
The single-piece bearing pin made of stainless steel provides a high level of stability. It is designed to allow the door to be easily removed even in low lintel situations. The specially manufactured high-quality bearing point is nearly wear-free even for very heavy and frequently used doors, and therefore requires no maintenance by facility management.
The Hahn Rollenband AT was developed in close collaboration with door manufacturers and adapted to the system. Different door/frame combinations require special solutions. To process your request and order, we need accurate information about the relevant door/frame combination to be used.
